Roughgen - t tail option
Roughgen - t tail option

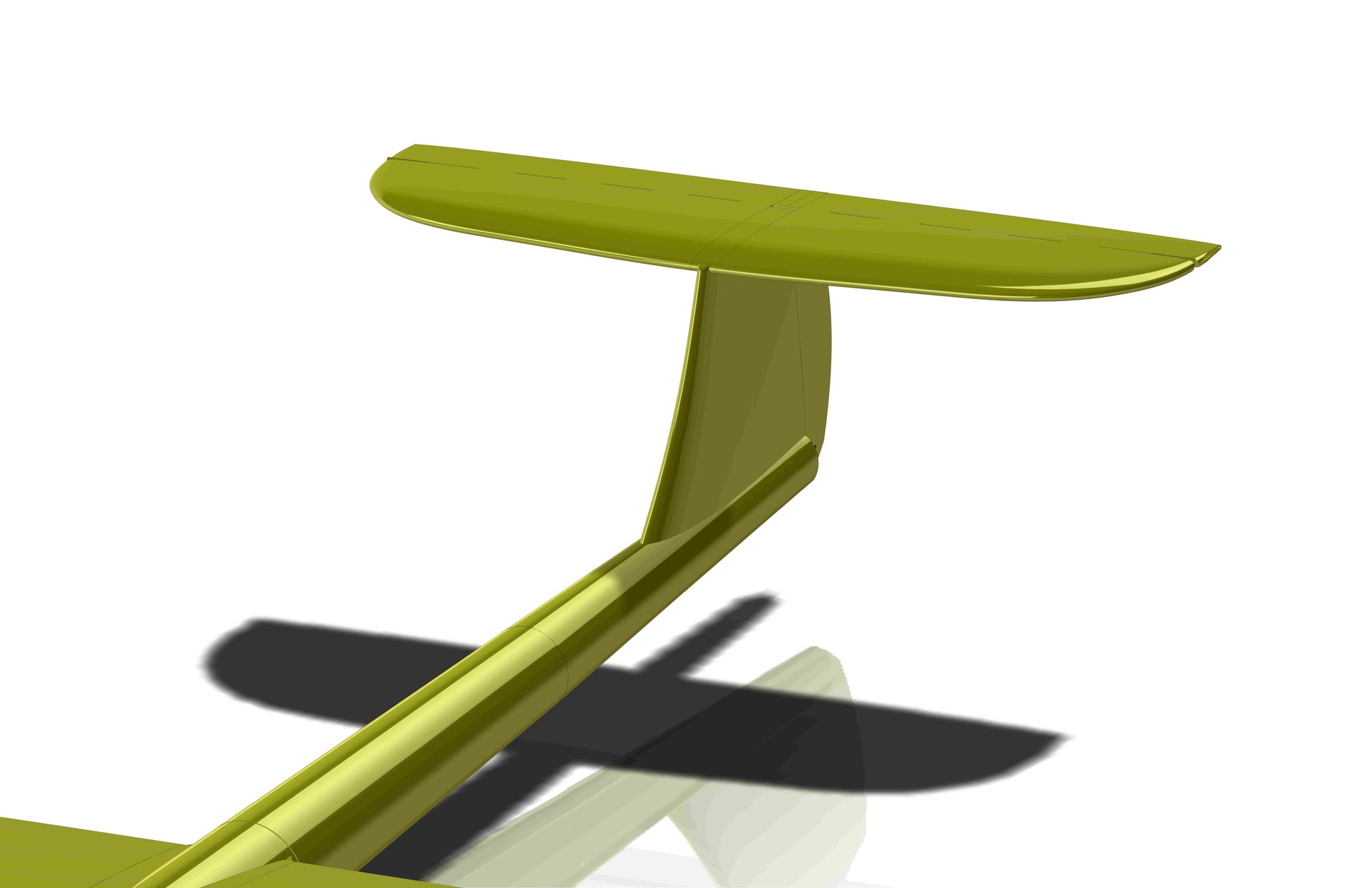

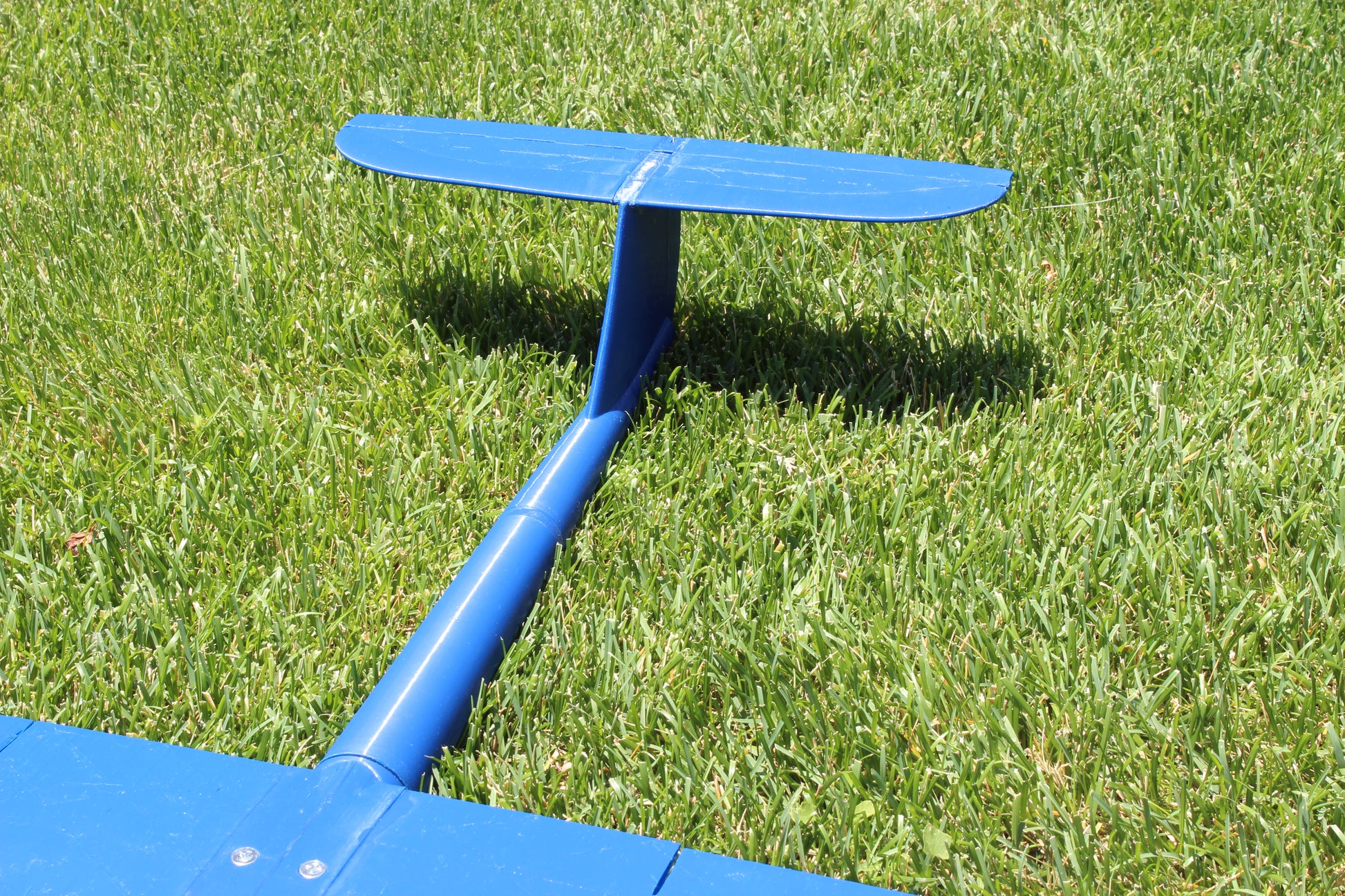

STL files for printing a t tail section for the Roughgen airframe. The same carbon reinforcement is recommended, but not necessary. Uses the same Horizontal / Elevator parts. Includes tail section, fuse finisher and different elevator control horns print files.
The Roughgen "basic" file set is required t finish this airframe. These parts replace parts in the basic set to make the t-tail option.
What you get:
STL files for slicing and printing parts for the t-tail
g code files for printing these files in PETG on a Sindwinder X1

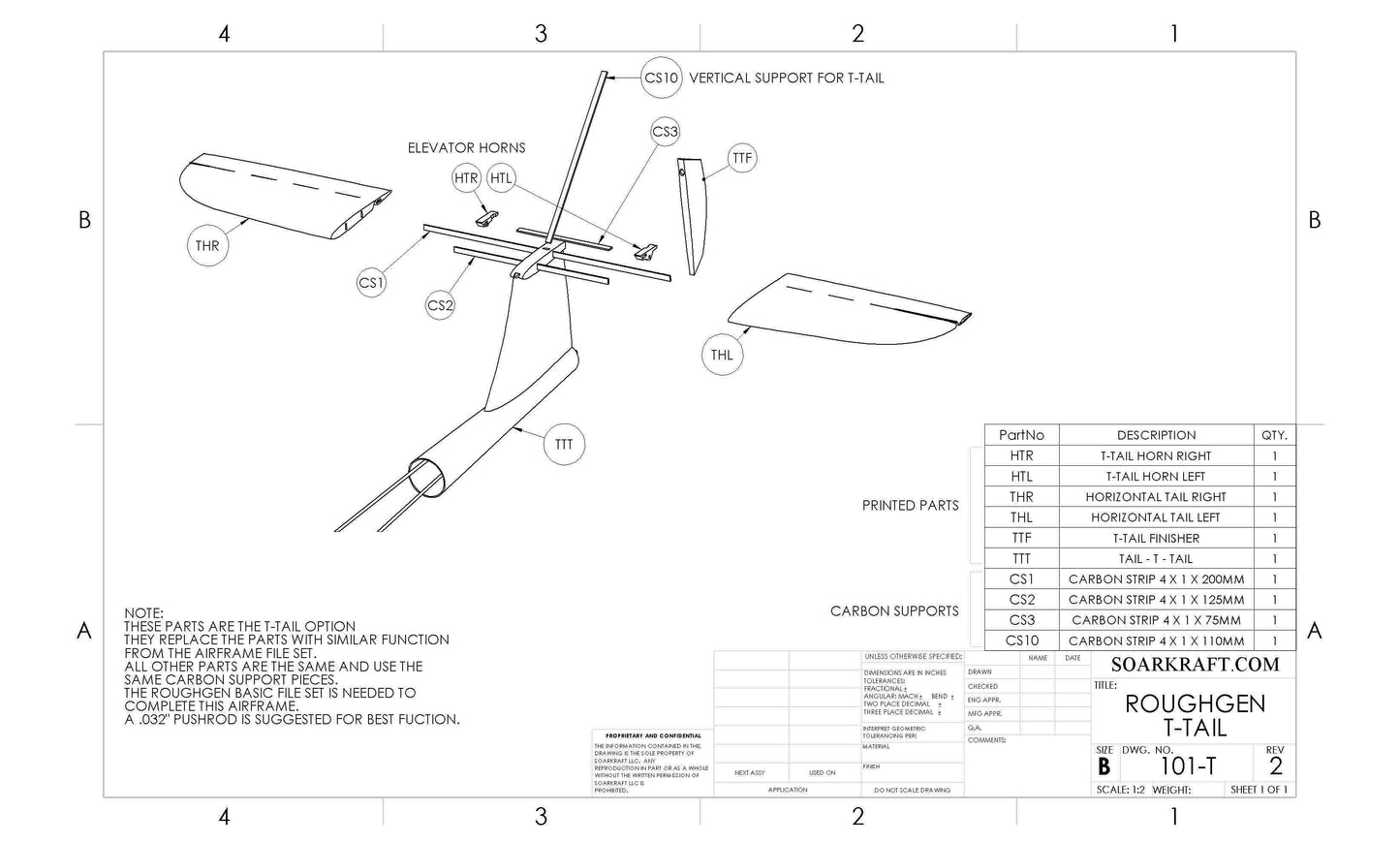

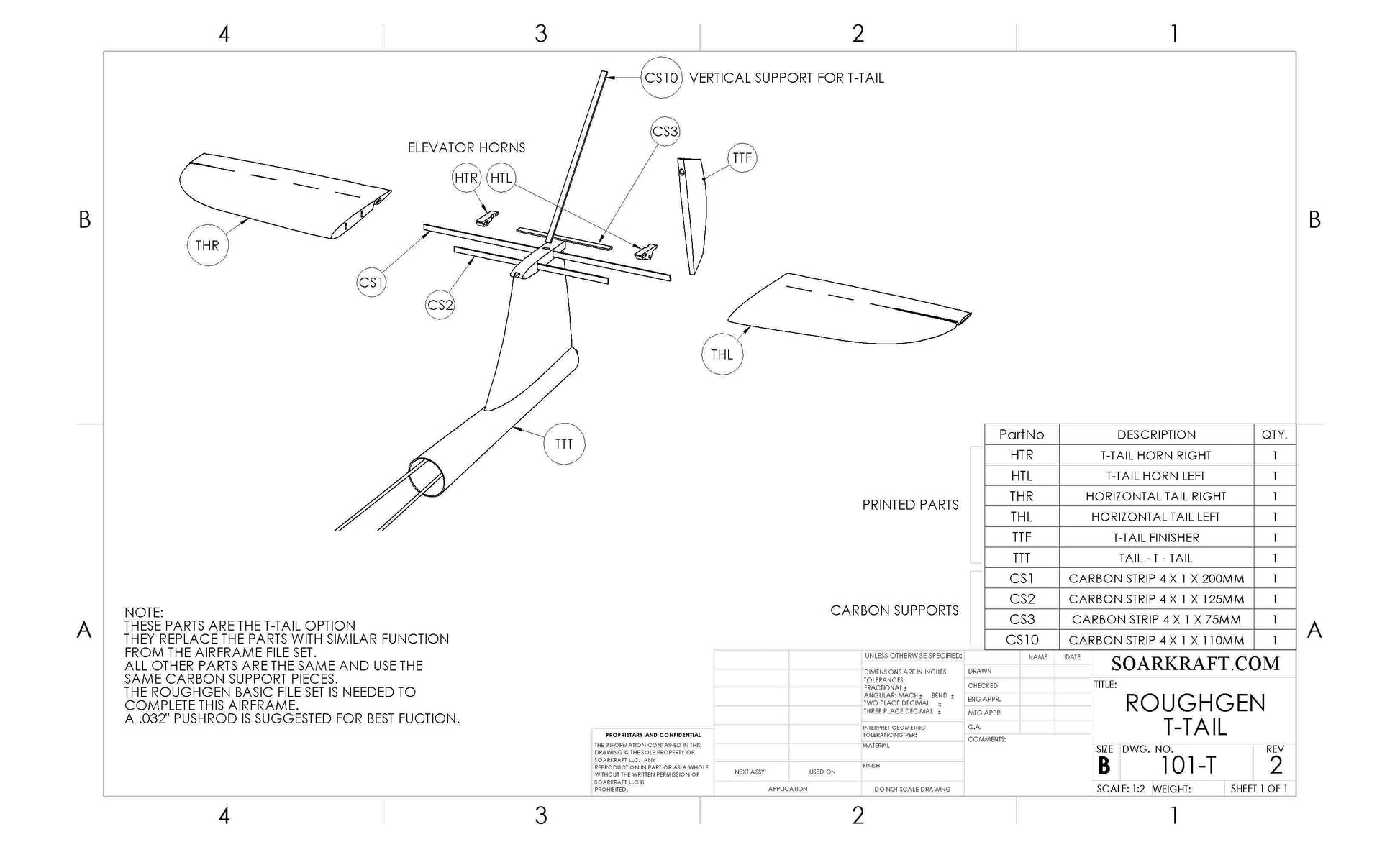

Building diagram
see video for detailed build information
Update - v3c - better pushrod path and minor feature changes for better printing
Update - v3b - update files for foaming and pre-foamed PLA printing
Update - v3 - update wing and fin parts to "Perimeter Before Inner" design
