Roughgen - Rudder option
Roughgen - Rudder option
Roughgen - Rudder option
Roughgen - Rudder option

Roughgen - Rudder option

Regular price
$2.00
Sale price
$2.00
Regular price
Coming Soon
Unit price
per
Shipping calculated at checkout.

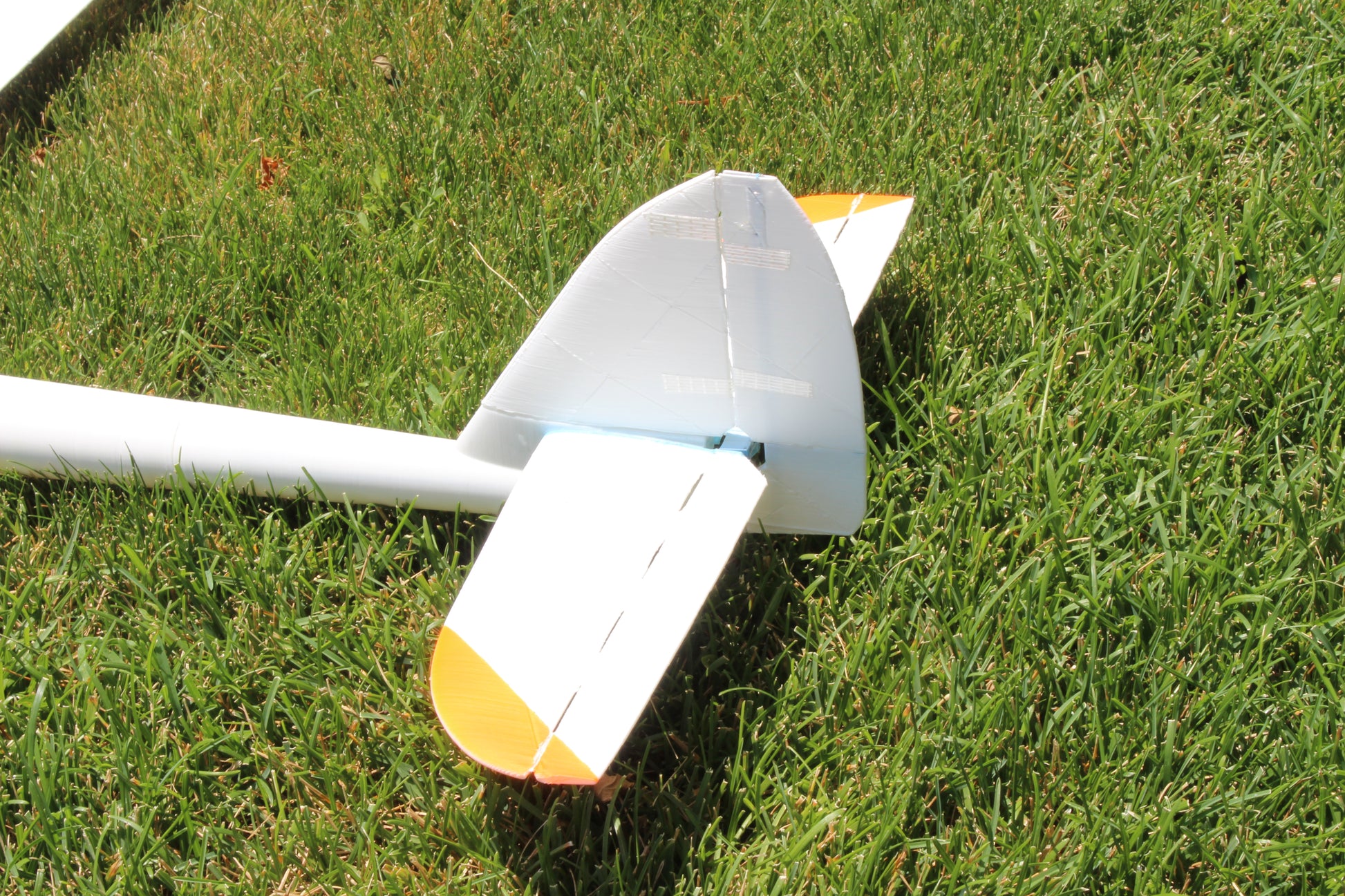

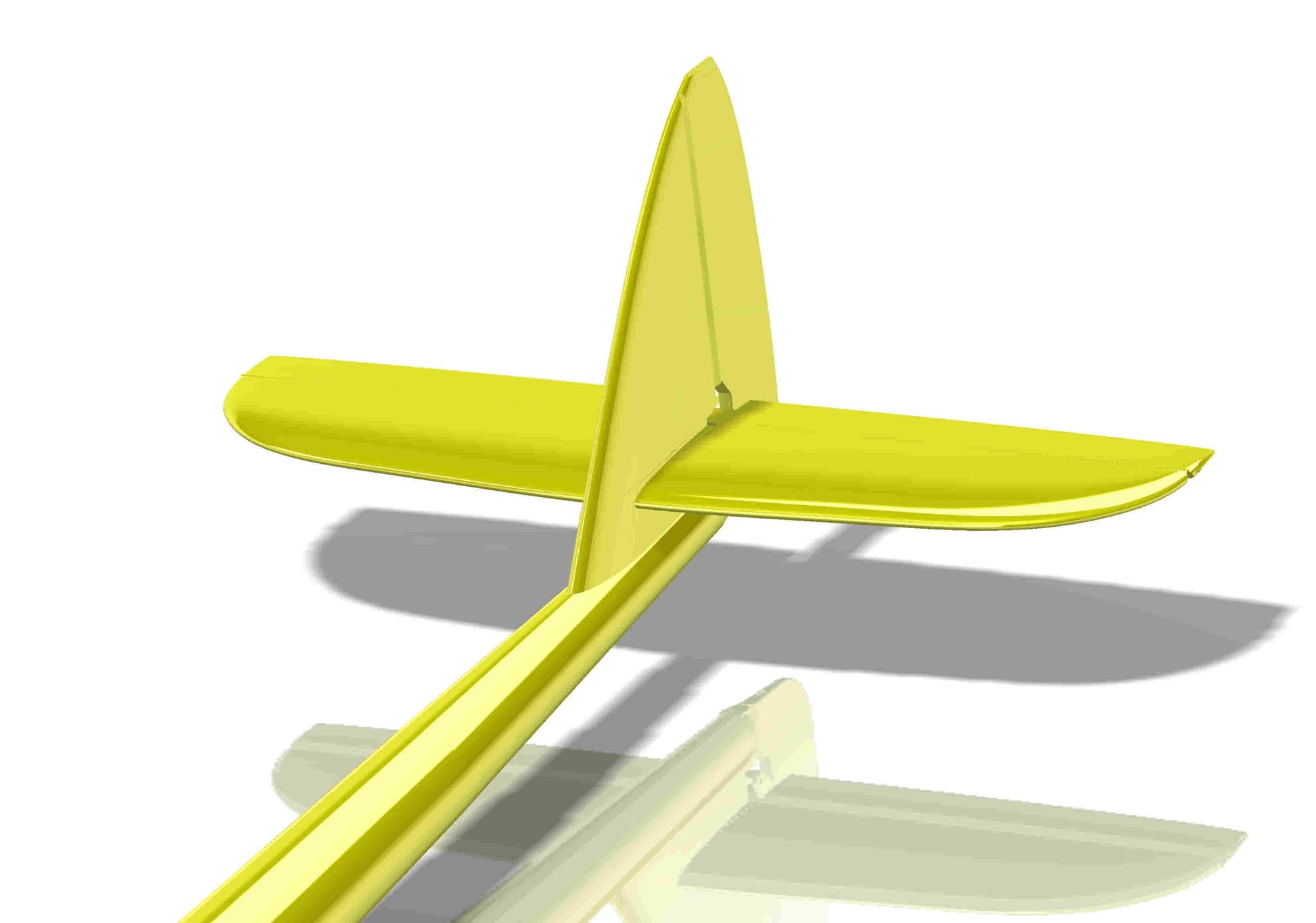

Vertical surface with rudder

Must use cross tail horizontal and fuse to complete - available separate

This set of STL files are for printing a working rudder for the Roughgen airframe.  An additional servo and push rod is needed, but is the same size and length as the elevator requirements.

The carbon reinforcement is recommended, but not necessary.  Uses the same Horizontal / Elevator parts.  Includes three files to print the top, mid and bottom rudder pieces.

The Roughgen "basic" file set is required t finish this airframe.  These parts replace parts in the basic set to make the rudder option.

What you get:

STL files for slicing and printing parts for the rudder

g code files for printing these files in PETG on a Sidewinder X1

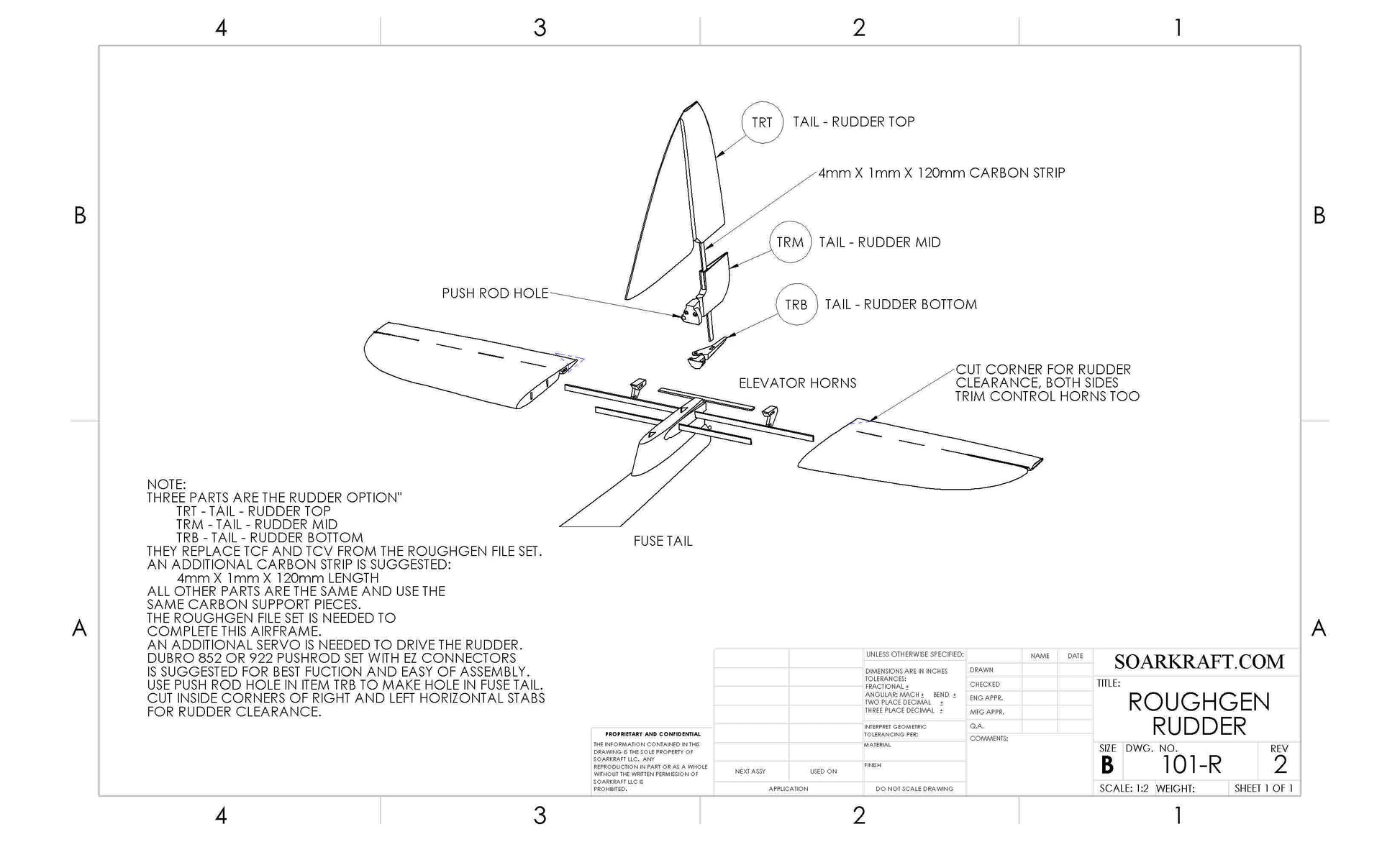

Building diagram

see video for detailed build information

Update - v2b - improved printing, bigger rudder surface, better hinge line, assembly tabs
