New - supplement LW power system - in included folder

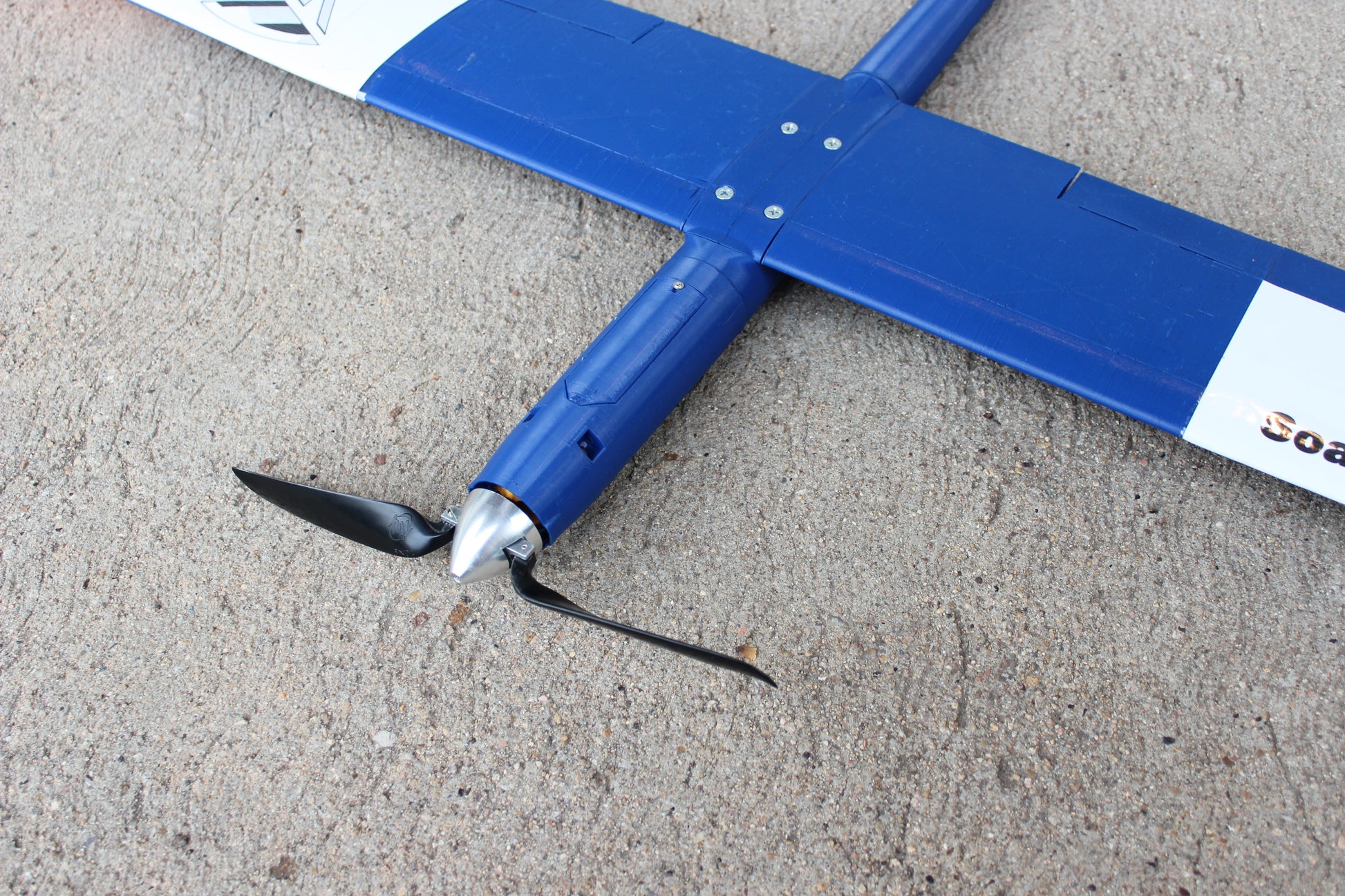

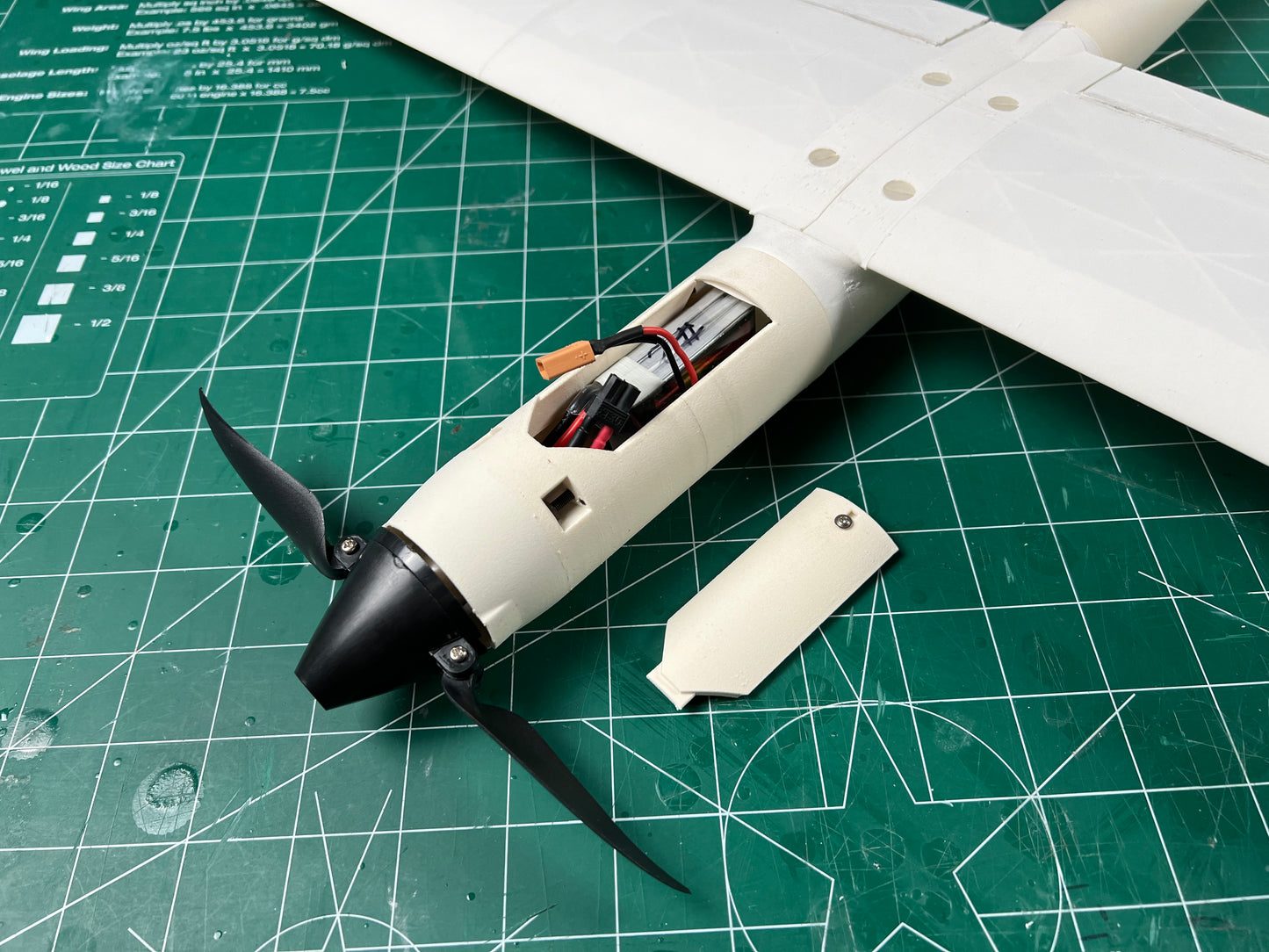

Original - This power pod carries more than enough power to launch your model right out of your hand, giving pilots without access to a slope or light wind days the enjoyment of power assist. With 5-15 minute flight times on a 1000mAh 3S lipo, climb fast and enjoy gliding around. Designed to use readily available and inexpensive parts, thanks to those drone guys, a complete power system is less than $50. However higher power motors, bigger higher pitch props will make this airframe into… well, lets just say it has potential…. Power Pod is designed with Down and Right Thrust angle for level flight with or without power, but may require some added shimming for different tails or propeller selection.

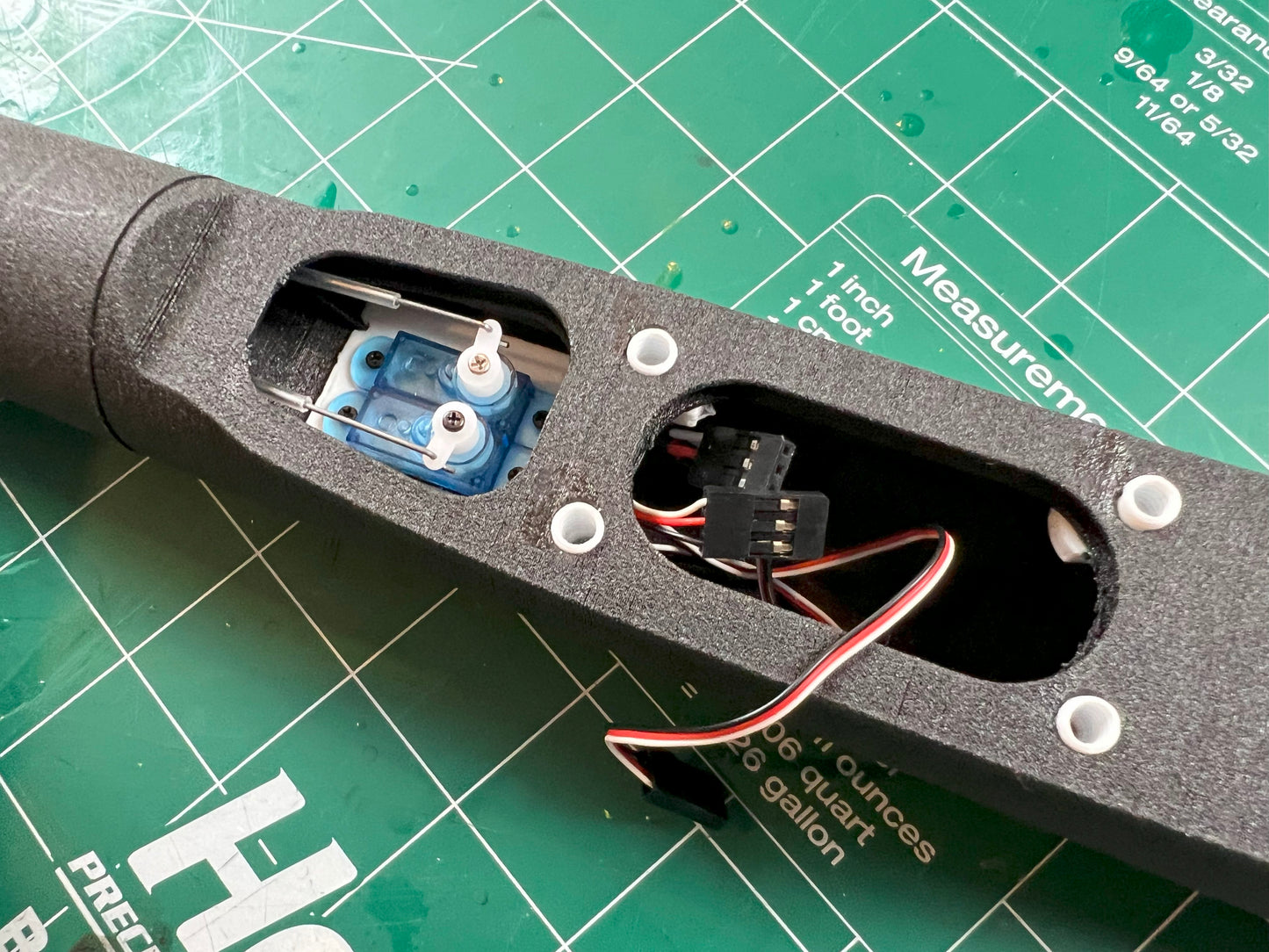

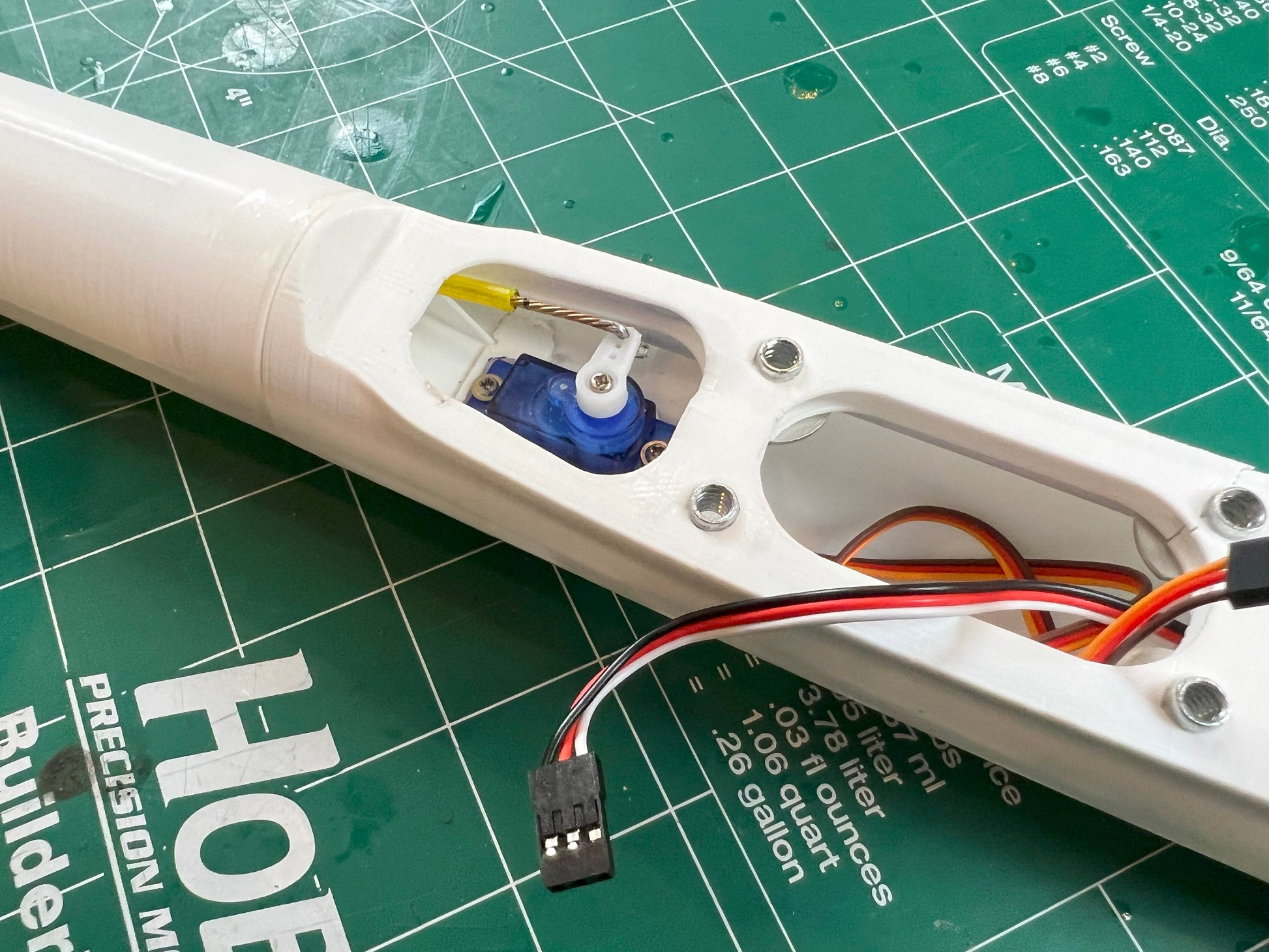

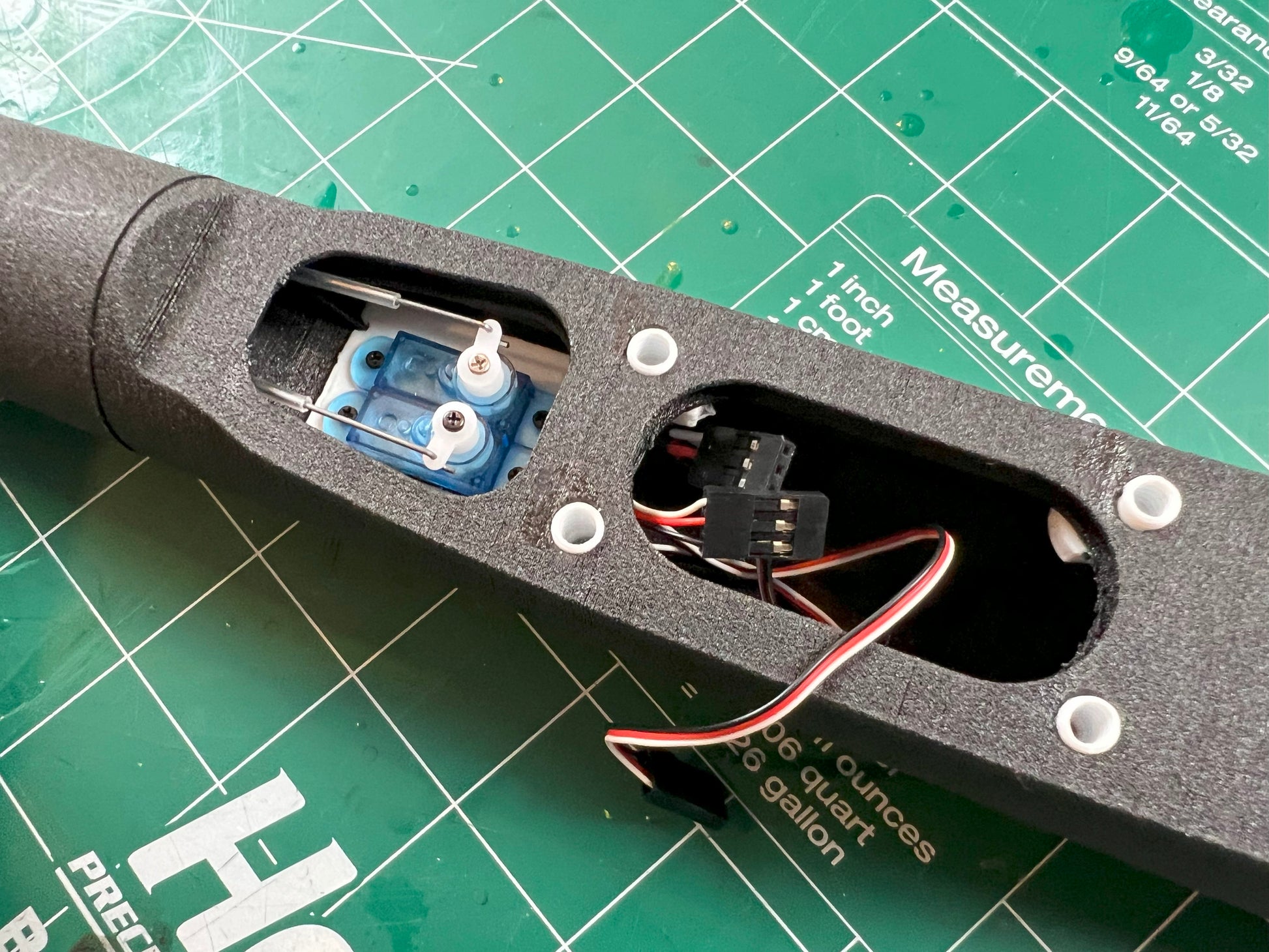

This is the set of files for adding a motor / propeller / controller / battery to the airframe. An elevator servo holder is also included to relocate the elevator sevro under the wing. These are only the print files. These needed to be printed to use.
This Power Pod will work with:
- Roughgen
- Pika
- Included with the Igneous
Carbon reinforcement is highly recommended and uses the same pieces as the slope set.
What you get:
STL files for slicing and printing parts for the Power Pod and Elevator 1 servo or 2 servo mount

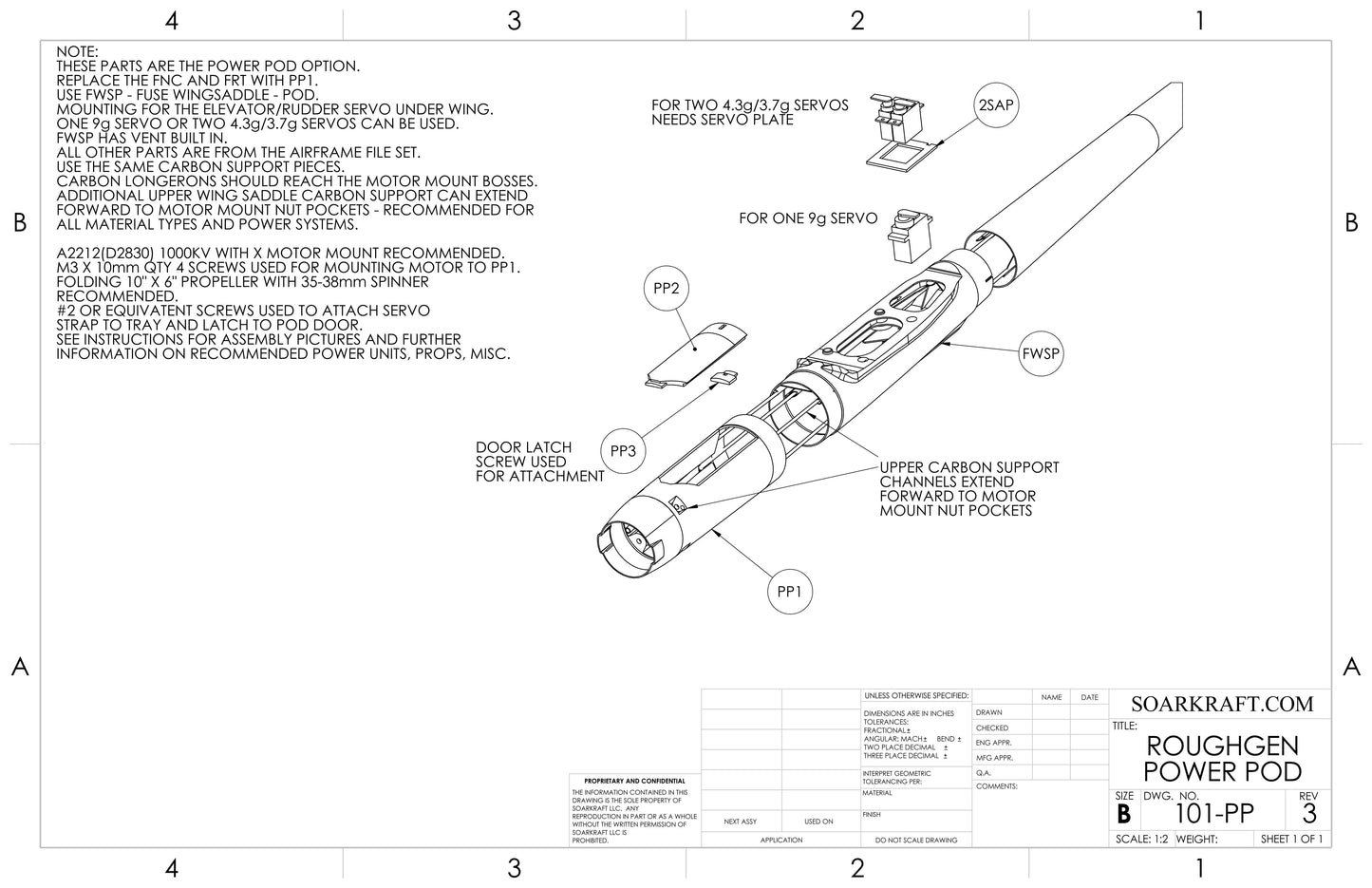

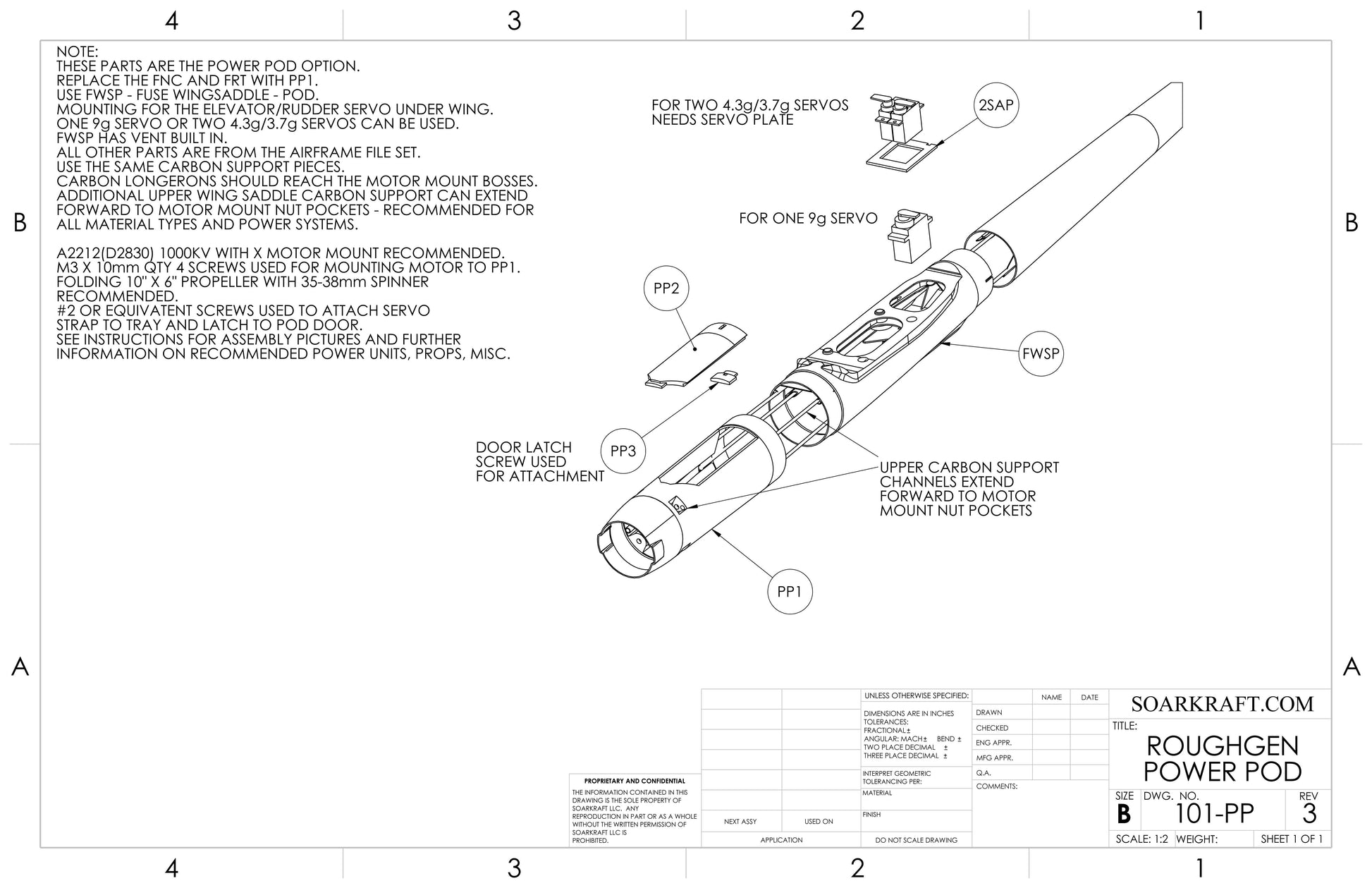

Building diagram and instructions.
Video instructions via youtube channel
Original: 215g
The Motor, ESC, Battery and Propeller must also be purchase separately:
A2212 / 13T 1000kv Electric Motor and 30A ESC - $20 for both – Motor and ESC
Lipo Battery – https://amzn.to/3kUJbHV - 2 batteries for $32 with Deans Connector
Folding Propeller – 10 x 6 folding prop – this is $10 - Folding Propeller
LW Power System:
2204 (Surpass C2204 1400kW Outrunner), a common 7" folding prop, light weight 15A ESC, and a 650 3S Lipo = 125g
