Roughgen - Cross Tail Option - Rudderless (one channel)

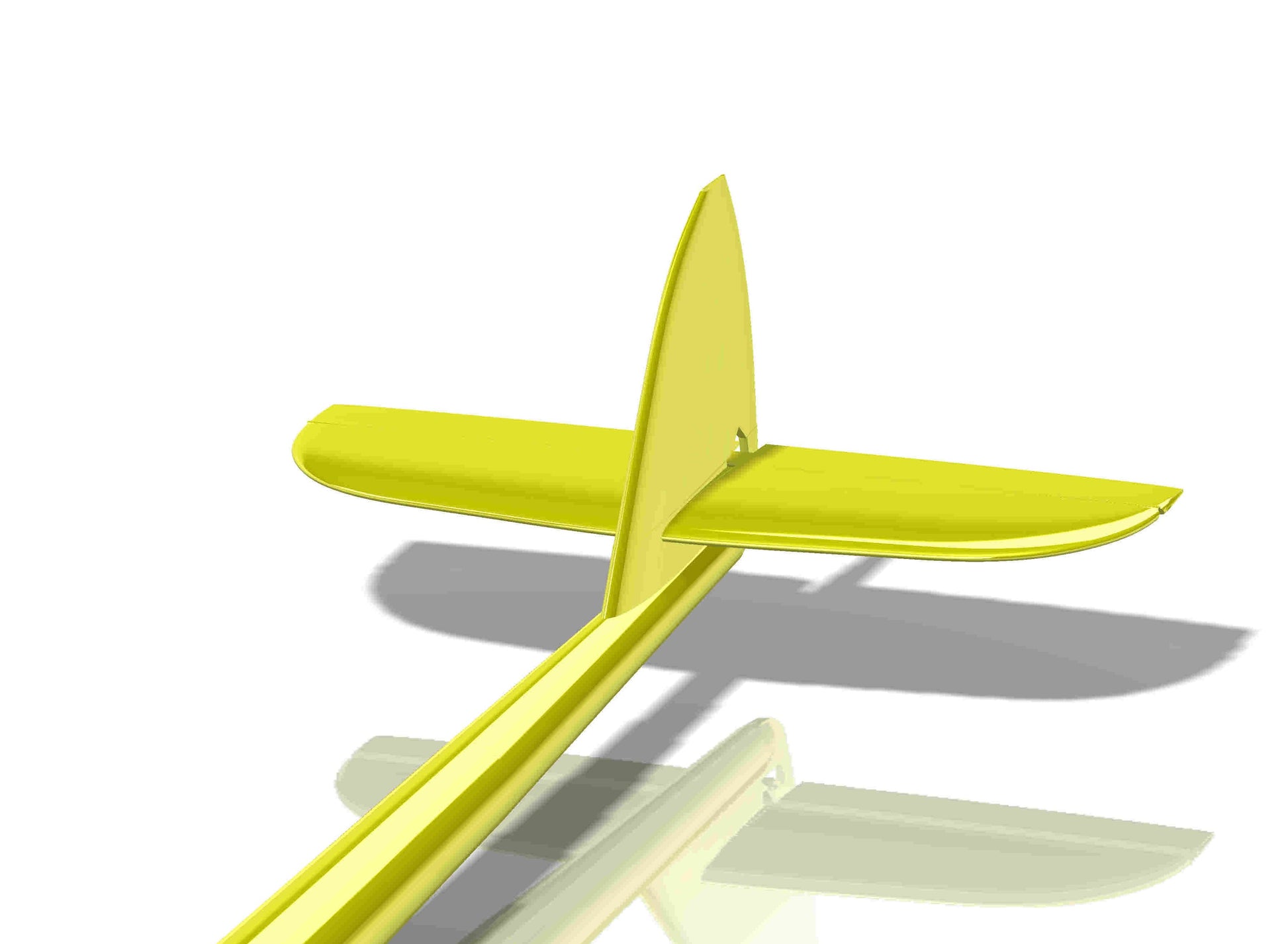

The Cross Tail Option - the full tail - horizontal with elevator and basic vertical (no rudder)

Vertical with rudder available separate

The Cross Tail is a simple and effective tail group for slope flying.  With just a single servo necessary for elevator control the Cross Tail is easy to build and set up and can take a beating on the slope.  This configurator is highly recommended for Dynamic Soaring due to strength and control.   The Rudder Option will attach to this tail group to if desired.

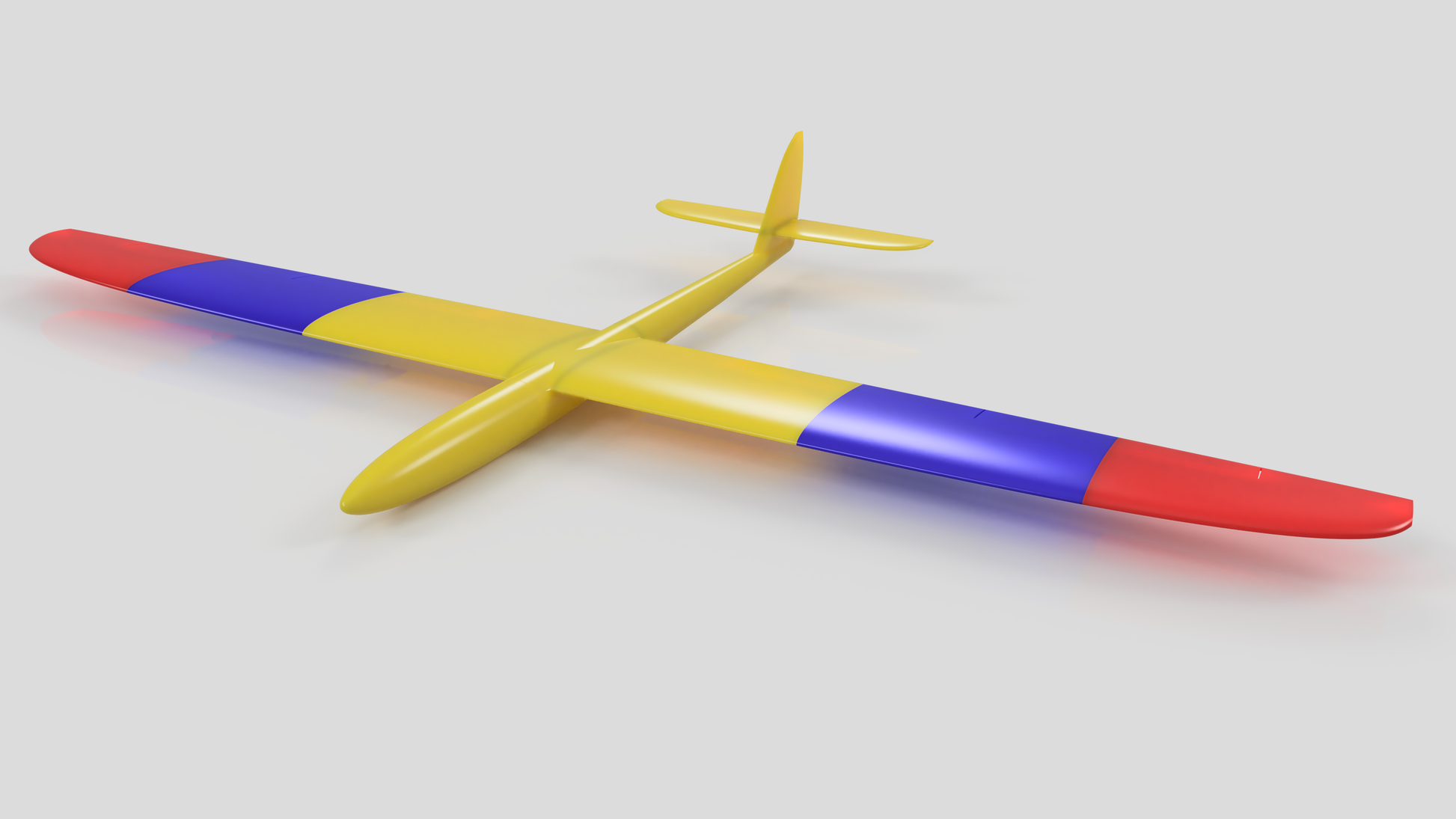

These are the 3D Print files for adding a Cross Tail to the Pika airframe.  The Pika or similar file set is required to complete this airframe.  The Pika being a V-Tail and be converted to the Roughgen style with this tail group.

What you get:

STL files for slicing and printing parts for the Cross Tail

Building Guide for assembly modifications for adding the Cross Tail

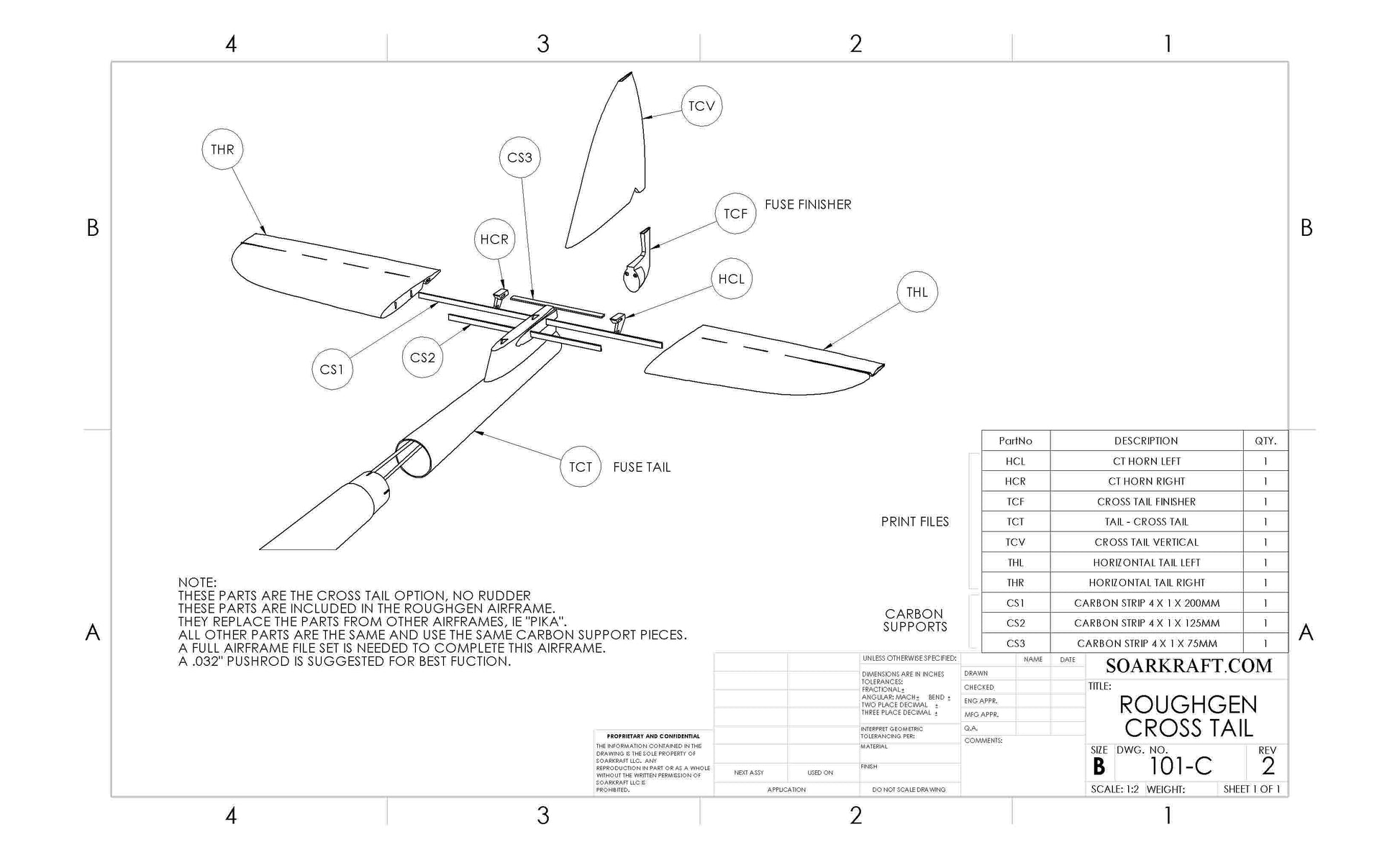

Building diagram

Update - v3b - update files for foaming and pre-foamed PLA printing
