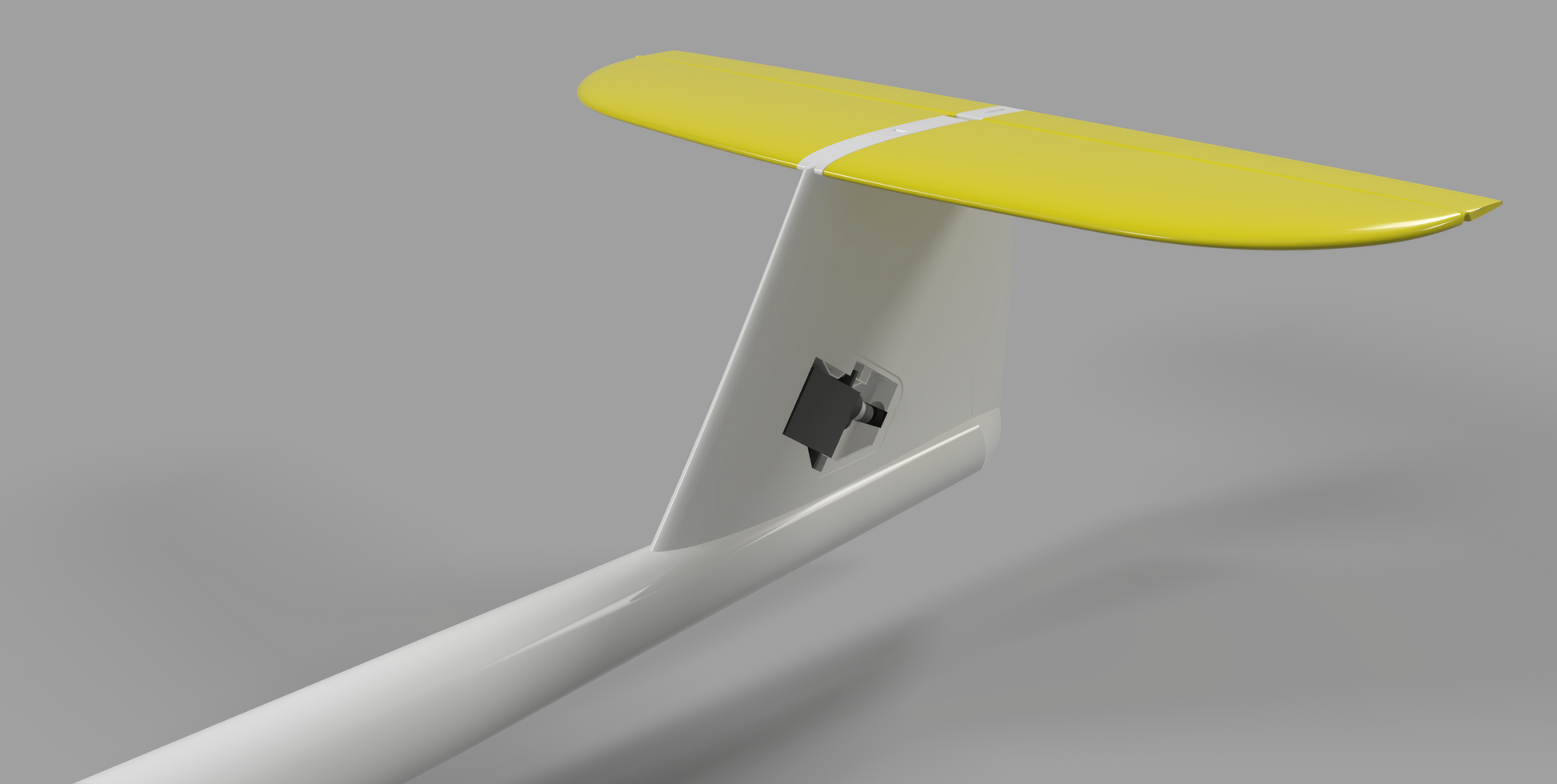

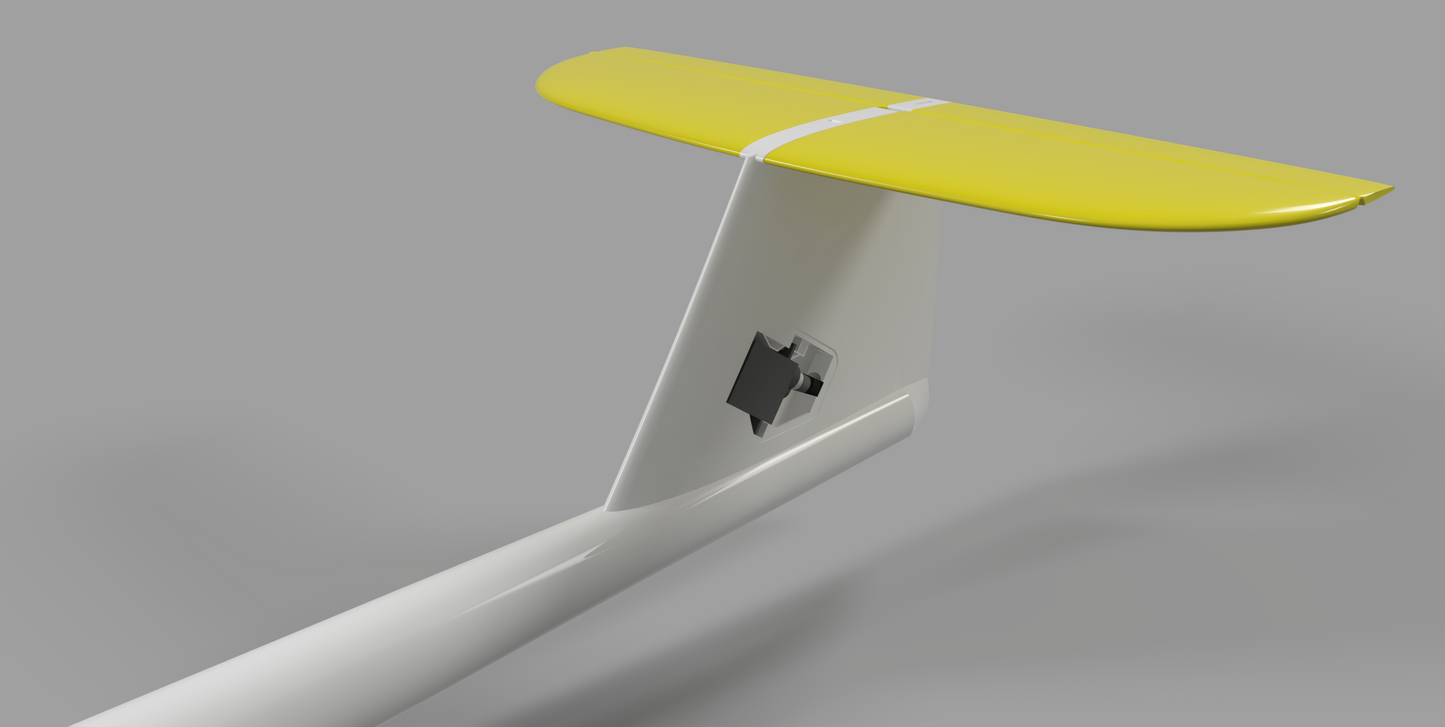

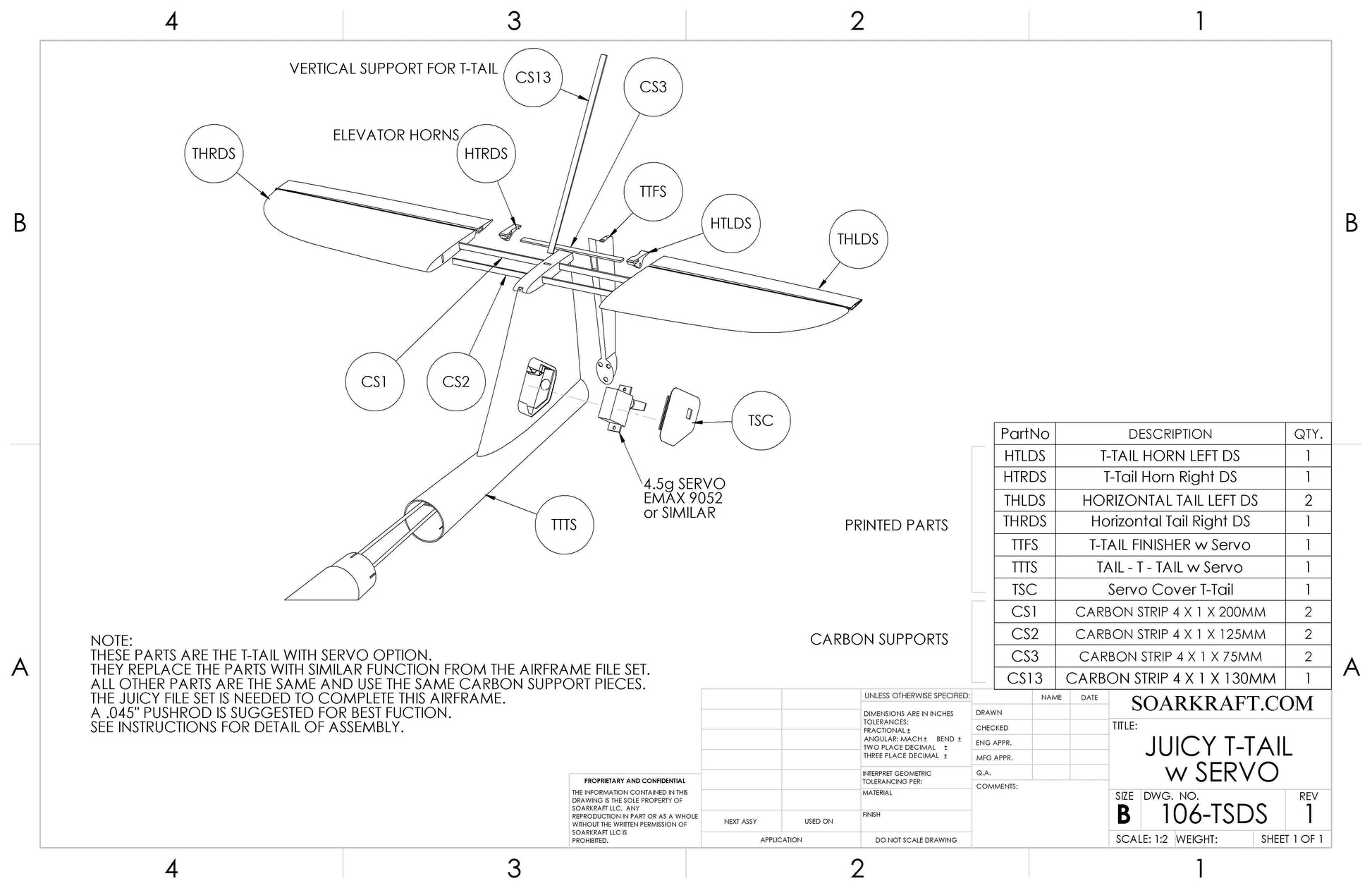

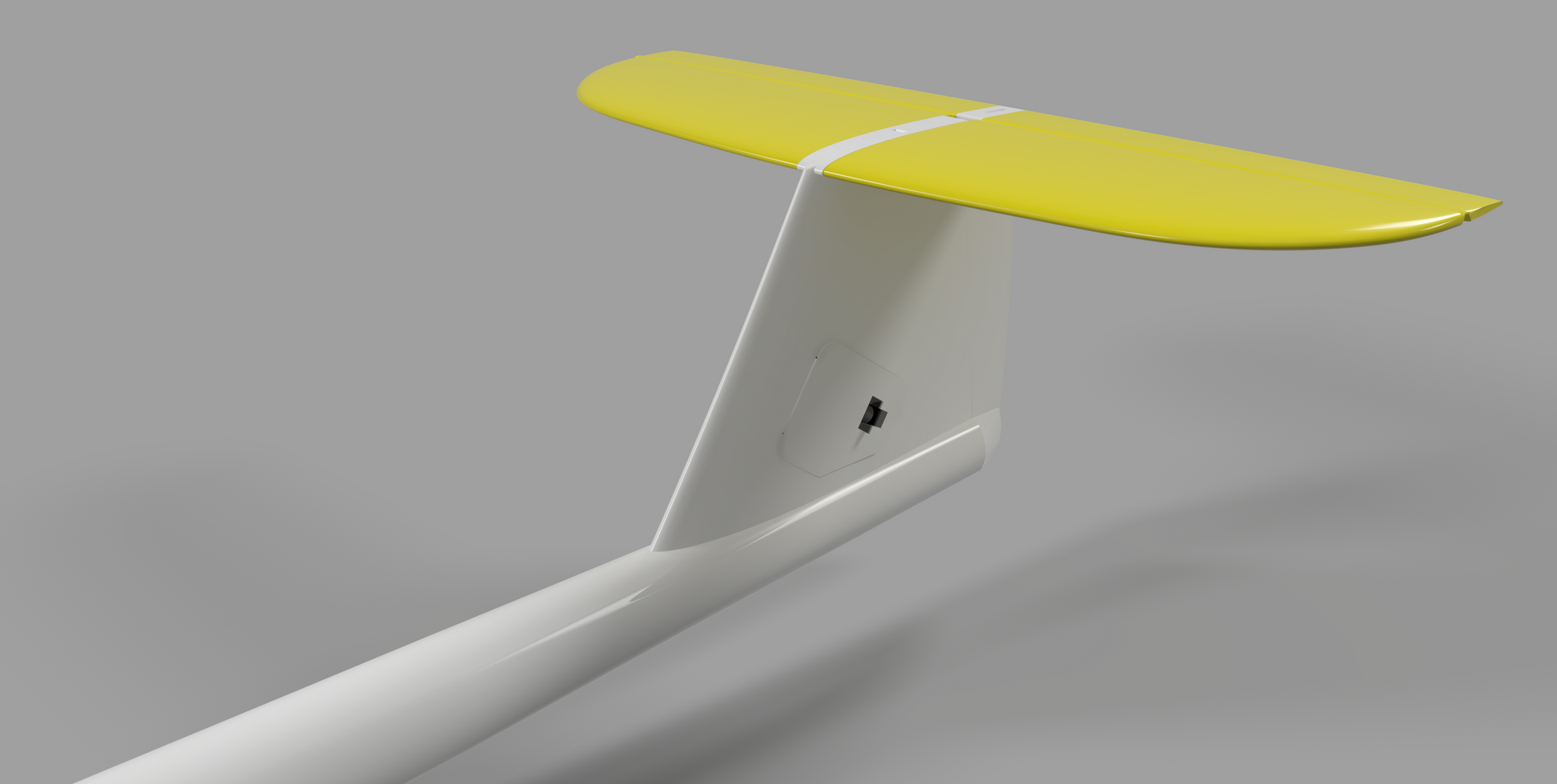

STL files for printing a t tail section for the Juicy airframe with the servo in the tail. A juicy airframe is needed to complete this and the same pultruded carbon reinforcement of 1 x 4mm strips, 530mm total length is 4 piece so a 1000mm length is plenty long enough. The vertical section is a little taller and the Horizontal are the Juicy specific with smaller elevation control surfaces for smoother high speed pitch control. Includes tail section, fuse finisher and different elevator control horns print files, DS horizontal surfaces and servo cover.

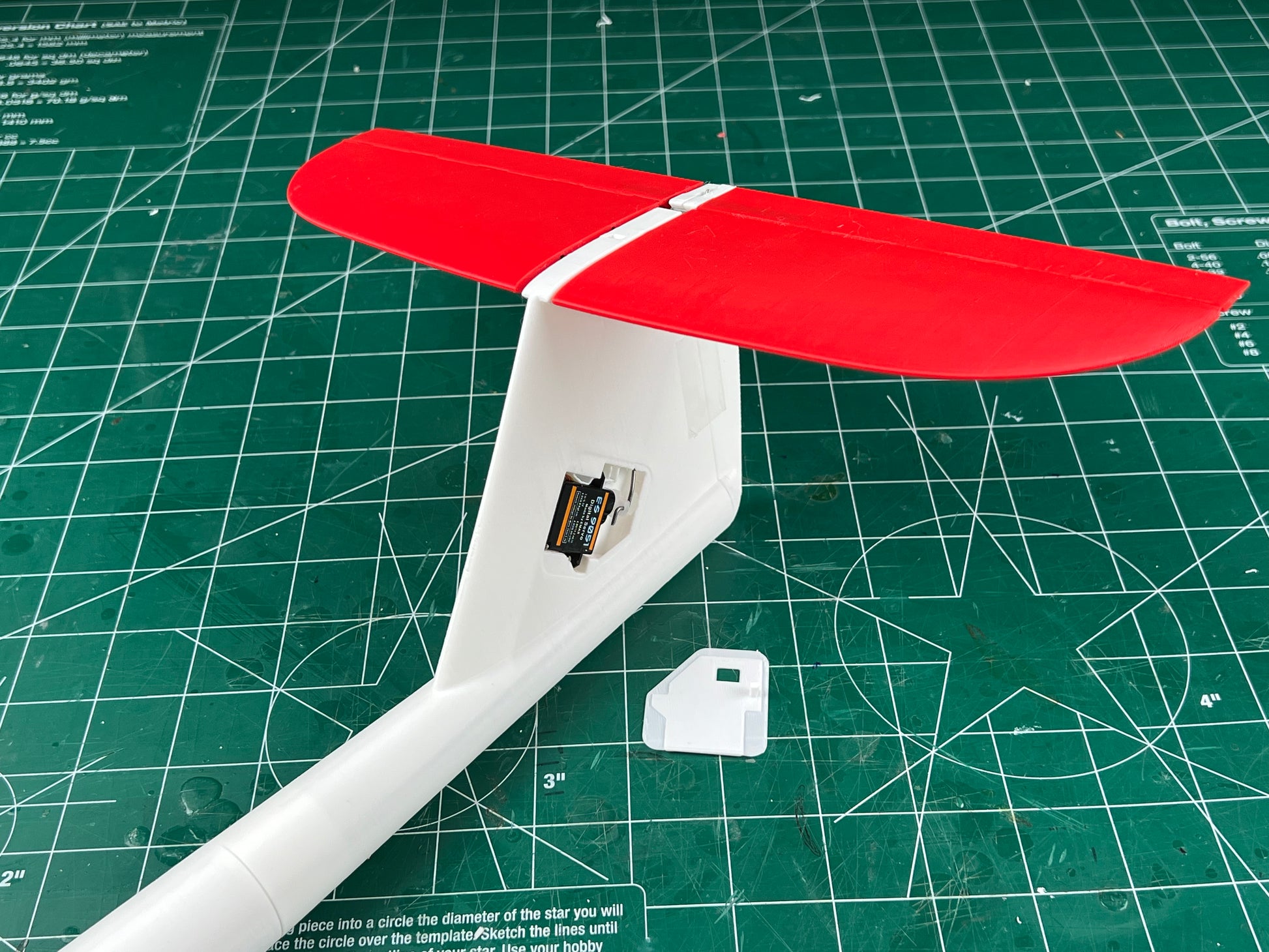

This is designed to have an EMAX ES9051 / ES9052 just drop right in, but can also fit a Dymond D47 if you happen to have some laying around (awesome servo but no longer available) as well as many there of the smaller performance servos..

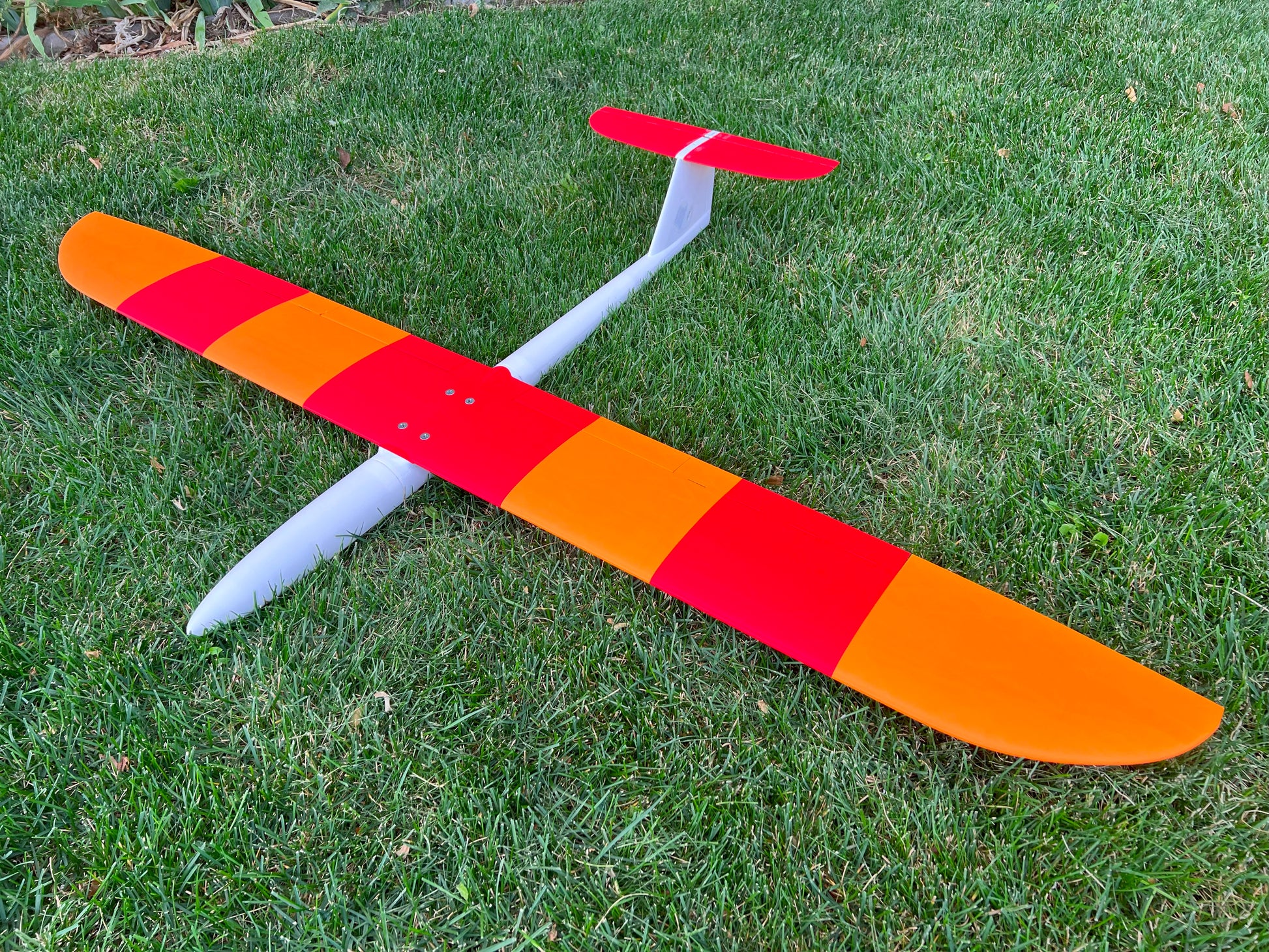

The Juicy is an advanced model design for dynamic soaring, high speeds are the goal.
The Juicy file set is required t finish this airframe. The parts in this set replace parts in the basic set to make the t-tail option.
What you get:
STL files for slicing and printing parts for the t-tail w servo
